Active Urban Construction – Denver, Colorado

​

A small construction site. A much larger field of information.

A construction site does not exist only inside its fence.

​

At 1700 Julian Street in Denver, active construction sits immediately beside streets, sidewalks, intersections, existing residential development and occupied properties.

​

That made this project an interesting test of something larger than aerial photography. Could a short aerial acquisition preserve not only what was happening inside the project, but how the project existed within everything around it?

​

THE FLYING LIZARD conducted an aerial documentation mission at 1700 Julian Street on September 25, 2026, capturing the active construction site while several stages of work were occurring simultaneously.

​

The objective was not simply to photograph progress.

It was to preserve the project as a connected spatial record while those conditions were still visible.

​

THE MISSION

Flying the DJI Matrice 4E at approximately 200 feet Above Ground Level (AGL), THE FLYING LIZARD collected 207 images using Smart Oblique acquisition.

​

The aerial portion of the mission required less than four minutes.

​

Those 207 photographs were then processed photogrammetrically into a connected representation of the construction site and its surrounding urban environment. All 207 images calibrated successfully within a single calibration block.

​

The active project itself occupies approximately 2.4 acres. But the aerial imagery did not stop at the property boundary. Because oblique photographs observe outward as well as downward, the completed reconstruction contained approximately 31.9 acres of visible coverage, including portions of adjacent streets, neighboring properties and surrounding development.

​

That difference became part of the value of the mission.

​

The construction site could be reviewed not as an isolated parcel, but as part of the environment in which the work was actually taking place.

​

SEVERAL STAGES. ONE MOMENT.

One of the most useful characteristics of the 1700 Julian Street dataset is that the project was not at a single uniform stage of construction.

​

Different areas were progressing differently.

​

The September 25 capture preserved exposed foundation and slab conditions, utility penetrations, first-level wall framing, areas where framing had progressed farther vertically, active earthwork, equipment, temporary site protection and staged construction materials — all within the same time-aligned record.

​

From the ground, those conditions are normally experienced separately.

One crew sees framing.

Another works around the slab.

Someone else is dealing with earthwork, access or material staging.

​

From the air, those individual activities become part of the same spatial environment. That allows someone reviewing the project later to understand not only what was present, but where it was located in relationship to everything else.

​

SEEING MORE THAN THE CONSTRUCTION FOOTPRINT

Urban construction creates a different documentation problem than a large undeveloped site. There is very little separation between the project and the environment around it.

​

At 1700 Julian Street, neighboring structures, sidewalks, streets and intersections sit immediately beside active construction. The Field Report therefore treated those surrounding conditions as part of the useful spatial context rather than simply as background scenery.

​

• Ground-level observation is naturally fragmented.

• Fencing blocks one view.

• Structures block another.

• Equipment, excavation and stored materials can change what is visible from any particular position.

• Aerial acquisition provides another perspective.

​

Instead of attempting to reconstruct the site mentally from a series of isolated viewpoints, the project and its surrounding environment can be reviewed within one continuous spatial representation.

​

THE DELIVERABLES THAT MATTER

The same 207-image acquisition supported several different ways of understanding the site.

​

A georeferenced orthomosaic created a continuous overhead representation useful for examining work areas, equipment, material staging, access and spatial relationships across the project.

​

A dense point cloud containing approximately 268.8 million reconstructed points represented visible surfaces as three-dimensional geometry rather than photography alone.

​

A Digital Surface Model represented reconstructed surface elevations across terrain, structures, equipment and other visible above-ground features.

​

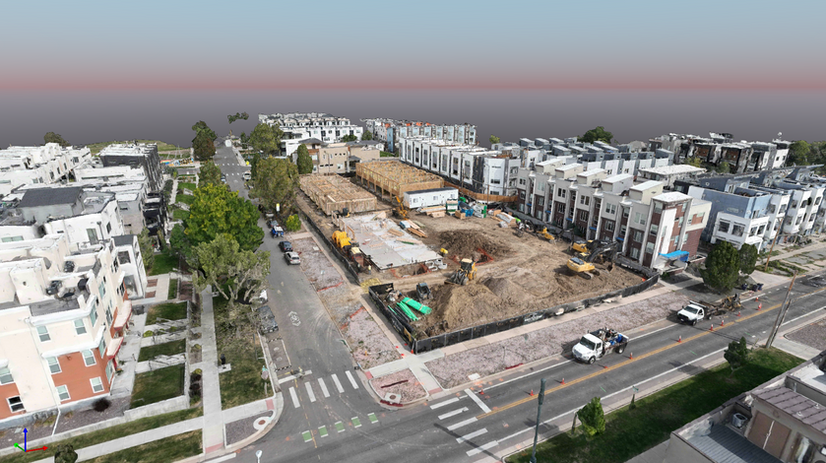

And a textured three-dimensional model allowed the construction site to be viewed from user-selected perspectives — particularly useful on a vertically developing project surrounded closely by existing structures.

​

Different representations.

One acquisition.

One moment in the life of the project.

​

AIR AND GROUND TELL DIFFERENT PARTS OF THE STORY

Aerial documentation provides continuity. Ground photography provides proximity.

​

During the same site visit, selected ground-level photographs were collected to supplement the aerial dataset. Those images preserved closer views of framing, slab conditions, visible utilities, earthwork, construction equipment and staged materials.

​

The aerial reconstruction establishes where those conditions existed in relationship to the project.

​

The ground images preserve what selected conditions looked like from human scale.

​

Used together, the two perspectives create a more complete visual record than either can provide independently.

​

WHEN TODAY BECOMES YESTERDAY

Construction documentation becomes more valuable precisely because construction refuses to stay still.

​

• The open framing visible on September 25 will eventually be enclosed.

• Exposed slab conditions will be covered.

• Materials will be installed or moved.

• Earthwork will change.

• Equipment will leave.

• Temporary access and staging areas will disappear or be reorganized.

​

A photograph taken later can document the new condition. It cannot recreate the old one.

​

Repeated aerial capture from comparable perspectives can therefore turn individual flights into a chronological record of the project — allowing later conditions to be compared against earlier ones and helping project teams understand how the site changed between documented dates.

​

That is where the September 25 dataset begins to matter beyond the day it was captured.

​

THE BOTTOM LINE

1700 Julian Street was not a large mapping mission. That is precisely what made it useful.

​

A construction site of approximately 2.4 acres generated a spatial record extending far beyond the construction footprint and preserved several stages of work simultaneously within their surrounding urban context.

​

The final dataset records what was visible, where it was located and how the project related to its surroundings on September 25, 2026. As construction advances, much of that information will become concealed, altered or disappear entirely.

​

The aerial record preserves it while it is still observable.

​

Mission Data Snapshot

Date of Flight: September 2026

Location: Denver, Colorado

Platform: DJI Matrice 4E

Mission Type: Smart Oblique Aerial Mapping

Flight Altitude: 200 feet Above Ground Level (AGL)

Images Captured: 207

Images Calibrated: 207

Active Construction Site: Approximately 2.4 acres

Processed Coverage: Approximately 31.9 acres

Average GSD: 2.4 cm/pixel

Dense Point Cloud: Approximately 268.8 million points

Processing PIX4Dmatic 2.5.4

Coordinate Reference System: WGS 84 / UTM Zone 13N — EPSG:32613

​

Technical Note: No surveyed Ground Control Points (GCPs) or independent checkpoints were used for this acquisition. The reported 2.4 cm/pixel GSD describes image resolution, not independently validated positional accuracy. The products are appropriate for documentation, visualization, spatial communication and comparative review, but should not be represented as survey-validated mapping.
